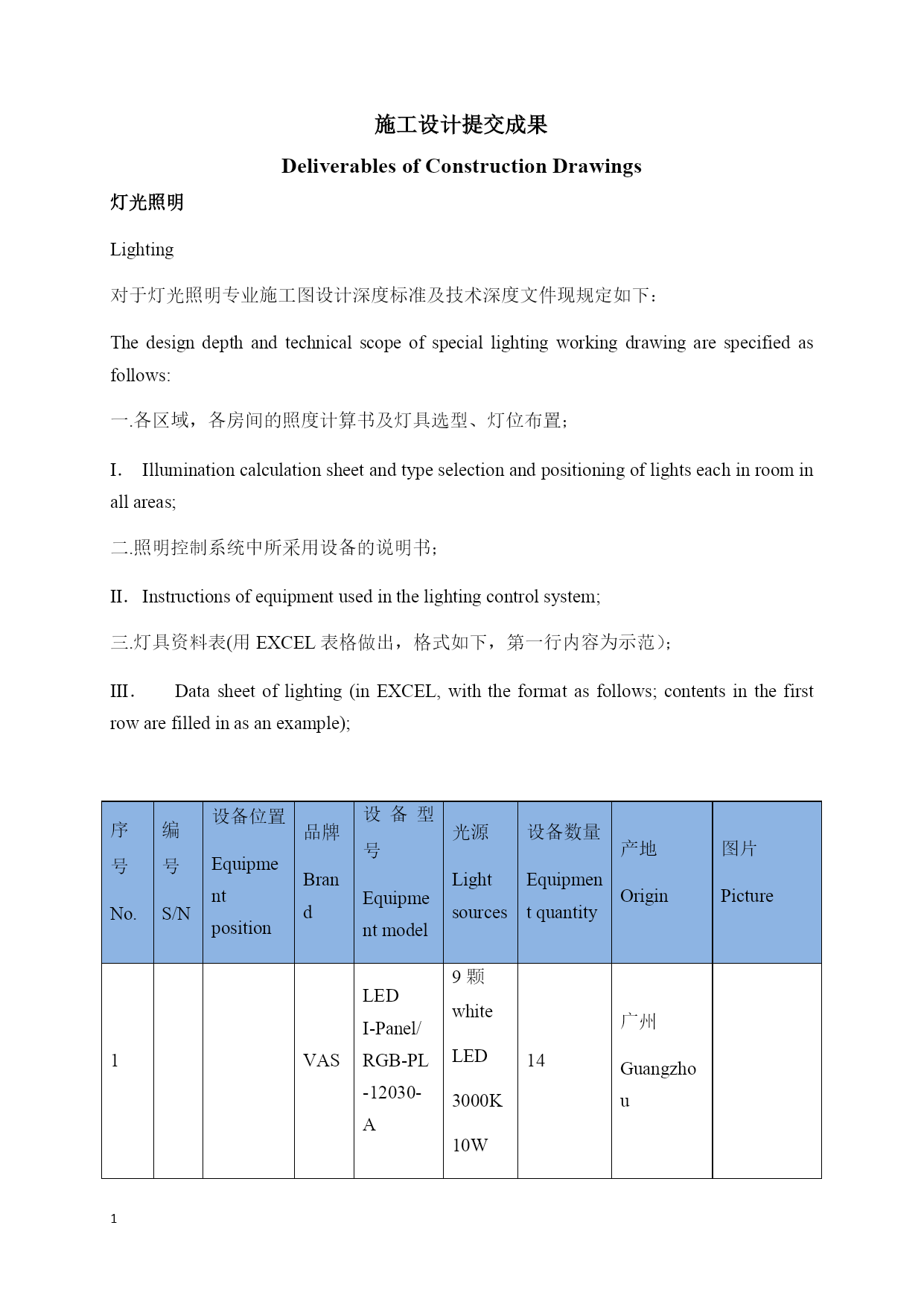

1 施工设计提交成果 DeliverablesofConstructionDrawings 灯光照明 Lighting 对于灯光照明专业施工图设计深度标准及技术深度文件现规定如下: Thedesigndepthandtechnicalscopeofspeciallightingworkingdrawingarespecifiedasfollows: 一.各区域,各房间的照度计算书及灯具选型、灯位布置; Illuminationcalculationsheetandtypeselectionandpositioningoflightseachinroominallareas; 二.照明控制系统中所采用设备的说明书; Instructionsofequipmentusedinthelightingcontrolsystem; 三.灯具资料表(用EXCEL表格做出,格式如下,第一行内容为示范); Datasheetoflighting(inEXCEL,withtheformatasfollows;contentsinthefirstrowarefilledinasanexample); 序号 No.编号 S/N设备位置 Equipmentposition品牌 Brand设备型号 Equipmentmodel光源 Lightsources设备数量 Equipmentquantity产地 Origin图片 Picture1VASLEDI-Panel/RGB-PL-12030-A9颗white LED 3000K 10W14广州 Guangzhou234567总计14 四.对施工图纸的要求如下: IV.RequirementsforConstructionDrawings 用于设计方案阶段的一套完整的图纸至少应包括封面、图纸目录、工程设计说明及图例、设备材料清单、系统图、平面图。 Acompletesetofdrawingsusedinthedesignstageshallatleastincludethecover,drawingcontent,engineeringdesigninstructionsandgraphicsymbols,listofequipmentandmaterials,systemdiagram,andplanview. 用于施工阶段的图纸至少应包括封面、图纸目录、工程设计说明及图例、设备材料清单、系统图、平面图及设备的安装大样图。 Acompletesetofdrawingsusedintheconstructionstageshallatleastincludethecover,drawingcontent,engineeringdesigninstructionsandgraphicsymbols,listofequipmentandmaterials,systemdiagram,planview,andthedetaildrawingofequipmentinstallation. 照明专业图纸范围如下: Scopeofdrawingsforlightingisasfollows: 必须包括封面、图纸目录、工程设计说明及图例、设备材料清单、系统图、平面图、机房设备布置图、安装大样图。安装详图根据项目情况,应由设计师根据项目的可实现性和各专业分项工程的配合决定绘图深度,设计出满足项目需求的可实施的拓展性安装详图。 Itshallincludethecoversheet,drawingcontent,engineeringdesigninstructionsandgraphicsymbols,listofequipmentandmaterials,systemdiagram,planview,layoutofequipmentinequipmentroom,anddetaildrawingofequipmentinstallation.Feasibleandextendabledetaildrawingforequipmentinstallationshallbedesignedaccordingtotheprojectsituationsbythedesignerwhoshalldecidethedepthofdrawingaccordingtotheprojectfeasibilityandcoordinationbetweenallsubdivisionalworksofeachdisciplinetosatisfytheprojectrequirements. 4.1封面Cover 封面应包含项目名称、图纸性质(初步设计、施工图、竣工图等)、公司名称、日期。 Thecovershallbeart
