A:FundamentalsofSingle-chipMicrocomputer
Thesingle-chipmicrocomputeristheculminationofboththedevelopmentofthedigitalcomputerandtheintegratedcircuitarguablythetowmostsignificantinventionsofthe20thcentury

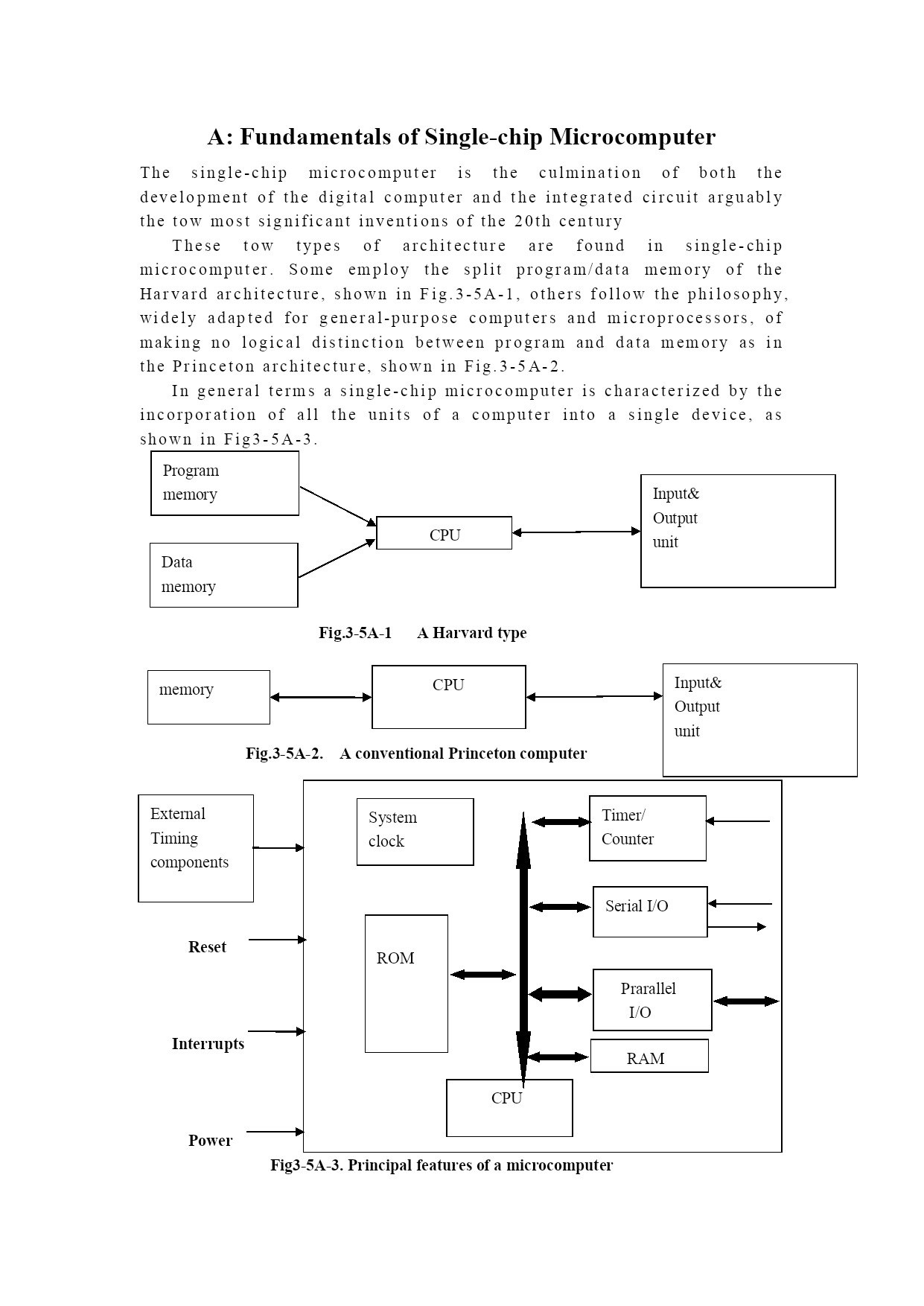

Thesetowtypesofarchitecturearefoundinsingle-chipmicrocomputer.Someemploythesplitprogram/datamemoryoftheHarvardarchitecture,showninFig.3-5A-1,othersfollowthephilosophy,widelyadaptedforgeneral-purposecomputersandmicroprocessors,ofmakingnologicaldistinctionbetweenprogramanddatamemoryasinthePrincetonarchitecture,showninFig.3-5A-2.
Ingeneraltermsasingle-chipmicrocomputerischaracterizedbytheincorporationofalltheunitsofacomputerintoasingledevice,asshowninFig3-5A-3.
Program
memory

Input&
Output
unit

CPU

Data
memory




Fig.3-5A-1AHarvardtype
Input&
Output
unit
CPU

memory



Fig.3-5A-2.AconventionalPrincetoncomputer

Timer/
Counter
System
clock
External
Timing
components




SerialI/O

ROM

Reset
Prarallel
I/O



RAM
Interrupts

CPU


Power
Fig3-5A-3.Principalfeaturesofamicrocomputer
Readonlymemory(ROM)
ROMisusuallyforthepermanent,non-volatilestorageofanapplicationsprogram.Manymicrocomputersandmicrocontrollersareintendedforhigh-volumeapplicationsandhencetheeconomicalmanufactureofthedevicesrequiresthatthecontentsoftheprogrammemorybecommittedpermanentlyduringthemanufactureofchips.Clearly,thisimpliesarigorousapproachtoROMcodedevelopmentsincechangescannotbemadeaftermanufacture.Thisdevelopmentprocessmayinvolveemulationusingasophisticateddevelopmentsystemwithahardwareemulationcapabilityaswellastheuseofpowerfulsoftwaretools.
