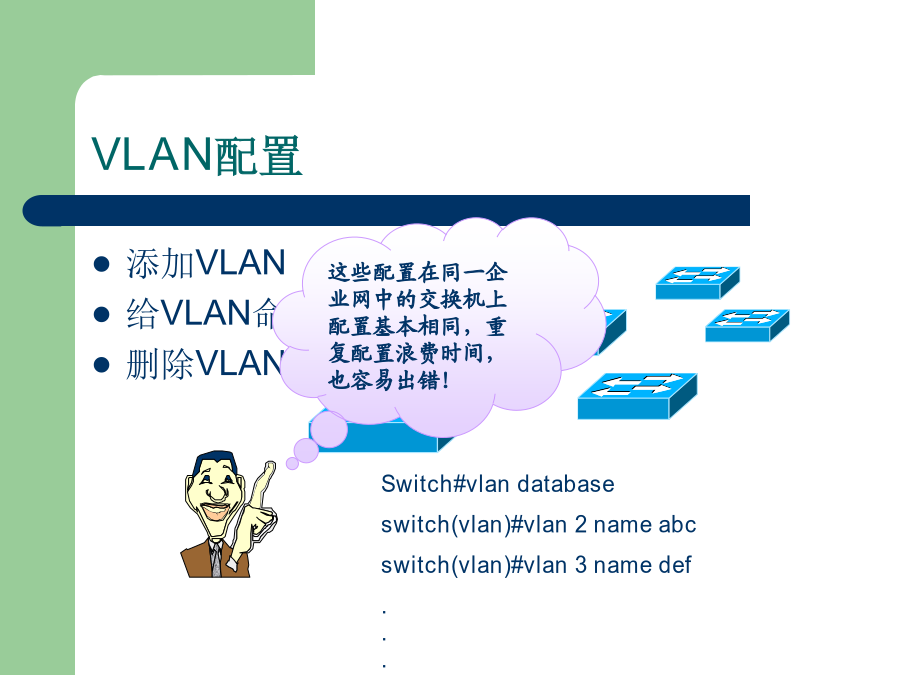

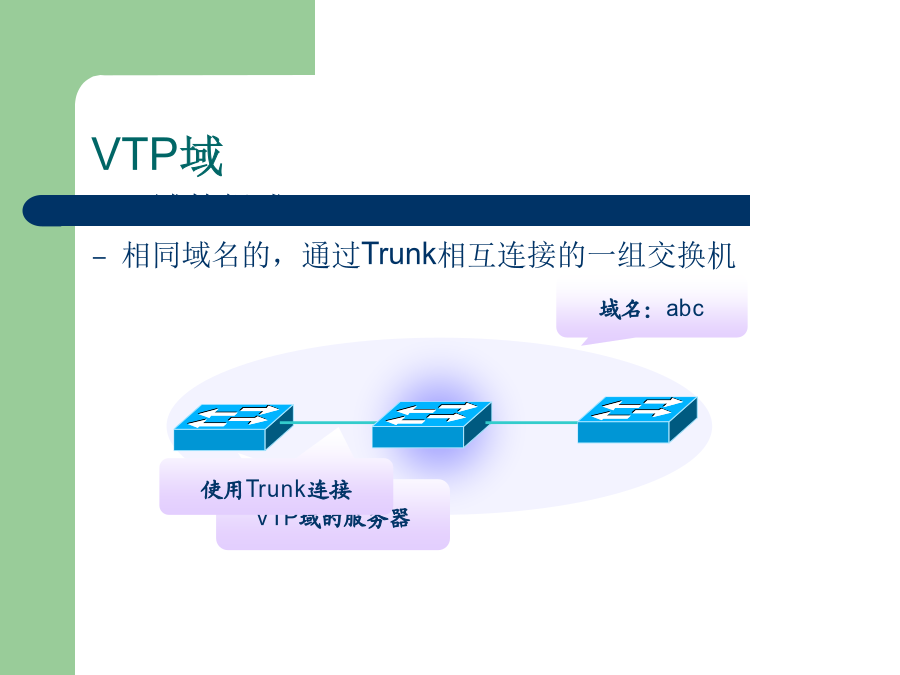

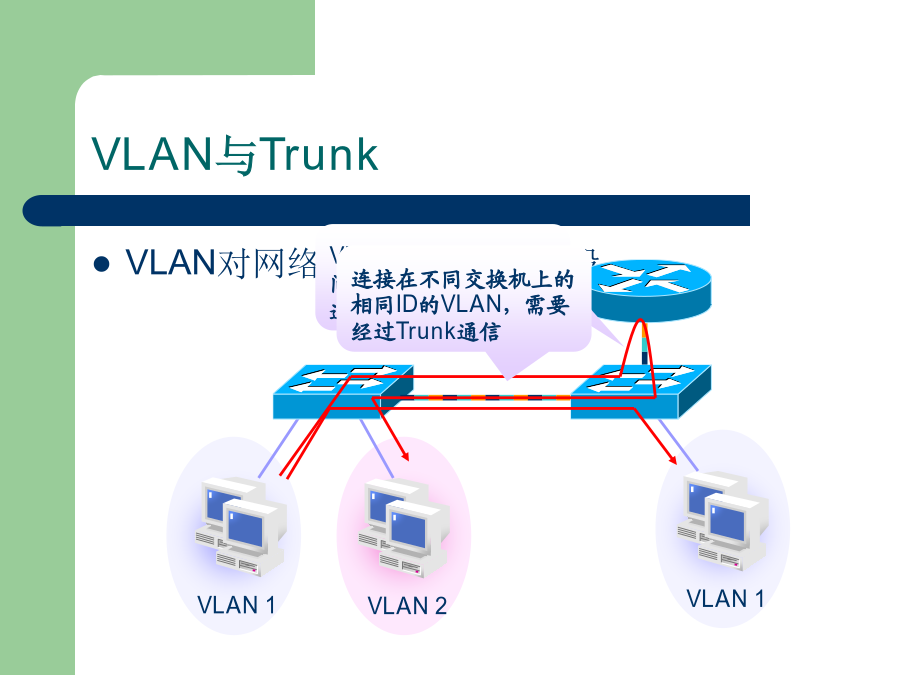

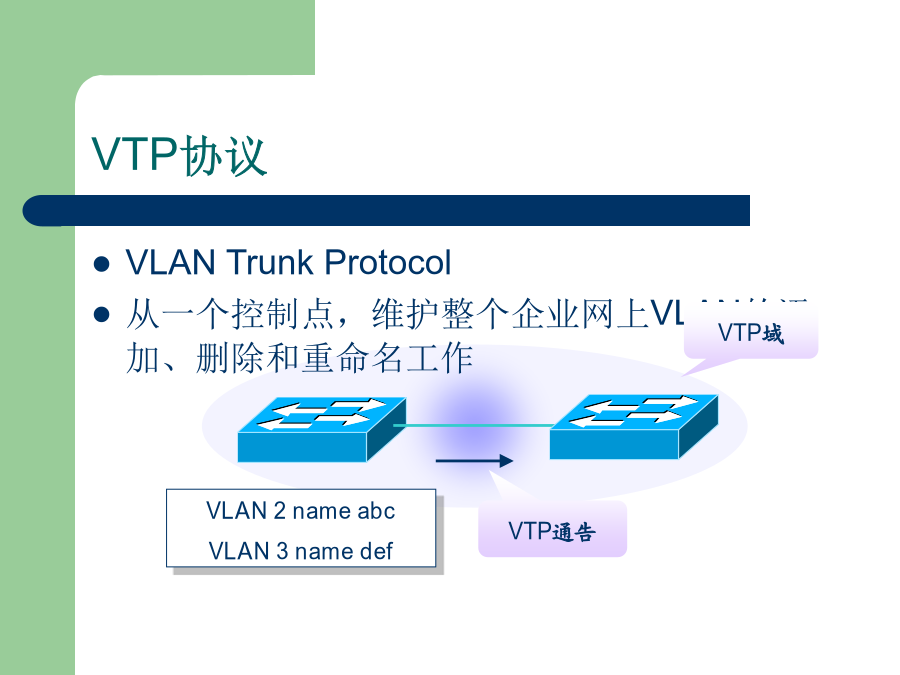

VTP协议VLAN配置VTP的运行模式4-1VTP的运行模式4-3VTP通告VTP修剪VTP配置3-1VTP配置3-2VTP配置3-3VTP配置实例在SwA上配置VTP
SwA(vlan)#vtpdomaintest
ChangingVTPdomainnamefromnulltotest

SwA(vlan)#vtpmodeserver
DevicemodealreadyVTPSERVER.

SwA(config)#interfacefastEthernet0/23
SwA(config-if)#switchportmodetrunk


在SwB上配置VTP
SwB(vlan)#vtpdomaintest
ChangingVTPdomainnamefromnulltotest

SwB(vlan)#vtpmodeclient
DevicemodealreadyVTPCLIENTmode.

SwB(config)#interfacefastEthernet0/22
SwB(config-if)#switchportmodetrunk

SwB(config)#interfacefastEthernet0/23
SwB(config-if)#switchportmodetrunk
在SwA上添加VLAN
SwA#vlandatabase
SwA(vlan)#vlan2namesales
VLAN2added:
Name:sales
SwA(vlan)#vlan3namedevelop
VLAN3added:
Name:develop
SwA(vlan)#exit
APPLYcompleted.
Exiting....在SwA的VLAN中添加端口
SwA(config)#interfacerangefastEthernet0/2-3
SwA(config-if-range)#switchportaccessvlan2

SwA(config)#interfacerangefastEthernet0/4-5
SwA(config-if-range)#switchportaccessvlan3
配置SwA的管理IP地址
SwA(config)#interfacevlan1
SwA(config-if)#ipaddress192.168.1.1255.255.255.0
SwA(config-if)#noshutdown
在SwA上查看VLAN信息
SwA#showvlanbrief(showvlan-switch)

VLANNameStatusPorts
----------------------------------------------------------------------------
1defaultactiveFa0/1,Fa0/6,Fa0/7,Fa0/8
Fa0/9,Fa0/10,Fa0/11,Fa0/12
Fa0/13,Fa0/14,Fa0/15,Fa0/16
Fa0/17,Fa0/18,Fa0/19,Fa0/20
Fa0/21,Fa0/22,Fa0/24
2salesactiveFa0/2,Fa0/3
3developactiveFa0/4,Fa0/5
1002fddi-defaultactive
1003token-ring-defaultactive
1004fddinet-defaultactive
1005trnet-defaultactive在SwA上查看VTP状态信息
SwA#showvtpstatus

VTPVersion:2
ConfigurationRevision:2
MaximumVLANssupportedlocally:64
NumberofexistingVLANs:7
VTPOperatingMode:Server
VTPDomainName:test
VTPPruningMode:Disabled
VTPV2Mode:Disabled
VTPTrapsGeneration:Disabled
MD5digest:0x340x9D0xE10x180x500x4C
0xC10xD0
Configurationlastmodifiedby192.168.1.1at7-27-0611:27:16
LocalupdaterIDis192.168.1.1oninterfaceVl1(lowestnumberedVLANinterfacefound)在SwB上查看VLAN信息
SwB#showvlanbrief

VLANNameStatusPorts
-----------------------------------------------------------------
