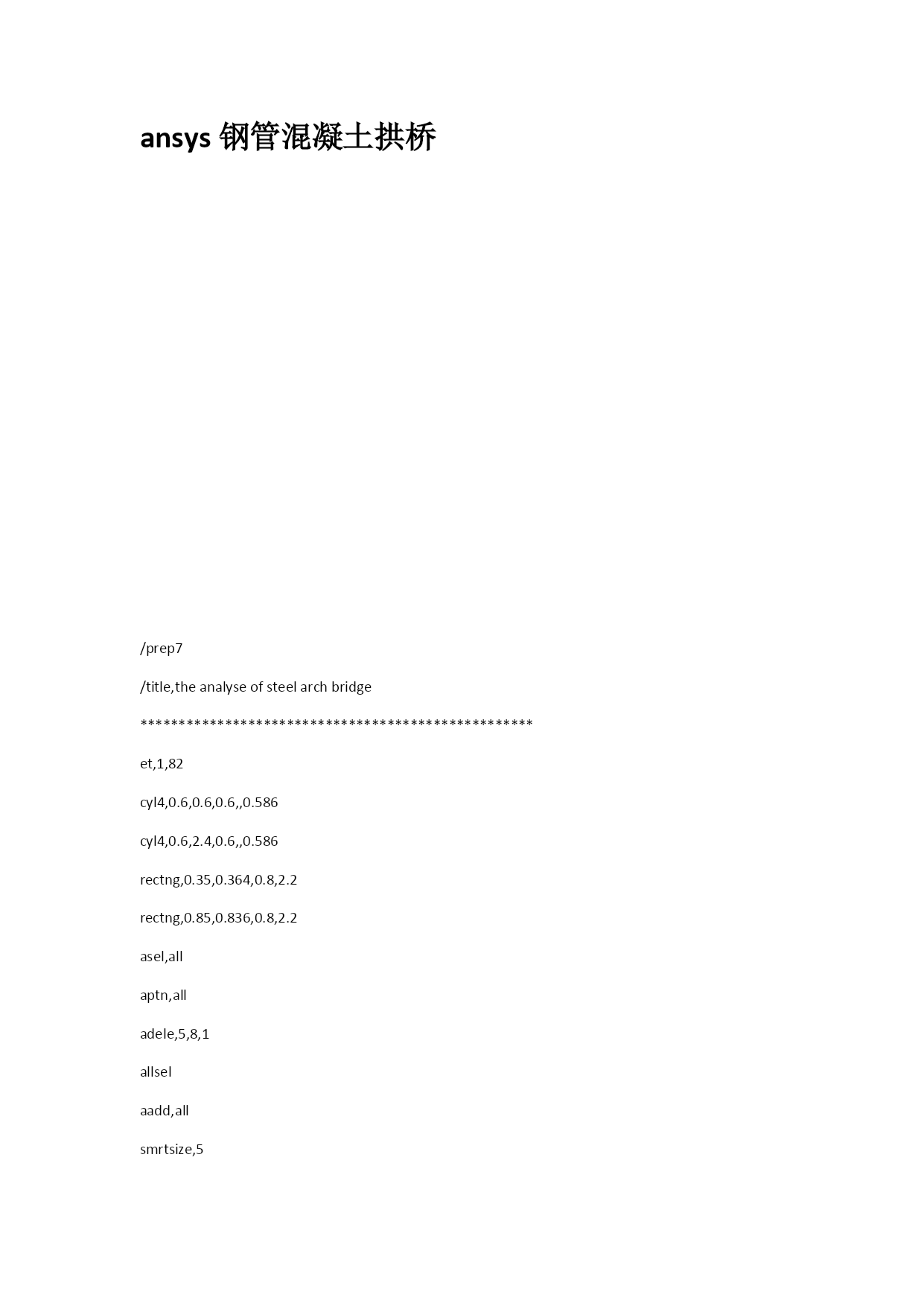

ansys钢管混凝土拱桥












/prep7
/title,theanalyseofsteelarchbridge
***************************************************
et,1,82
cyl4,0.6,0.6,0.6,,0.586
cyl4,0.6,2.4,0.6,,0.586
rectng,0.35,0.364,0.8,2.2
rectng,0.85,0.836,0.8,2.2
asel,all
aptn,all
adele,5,8,1
allsel
aadd,all
smrtsize,5

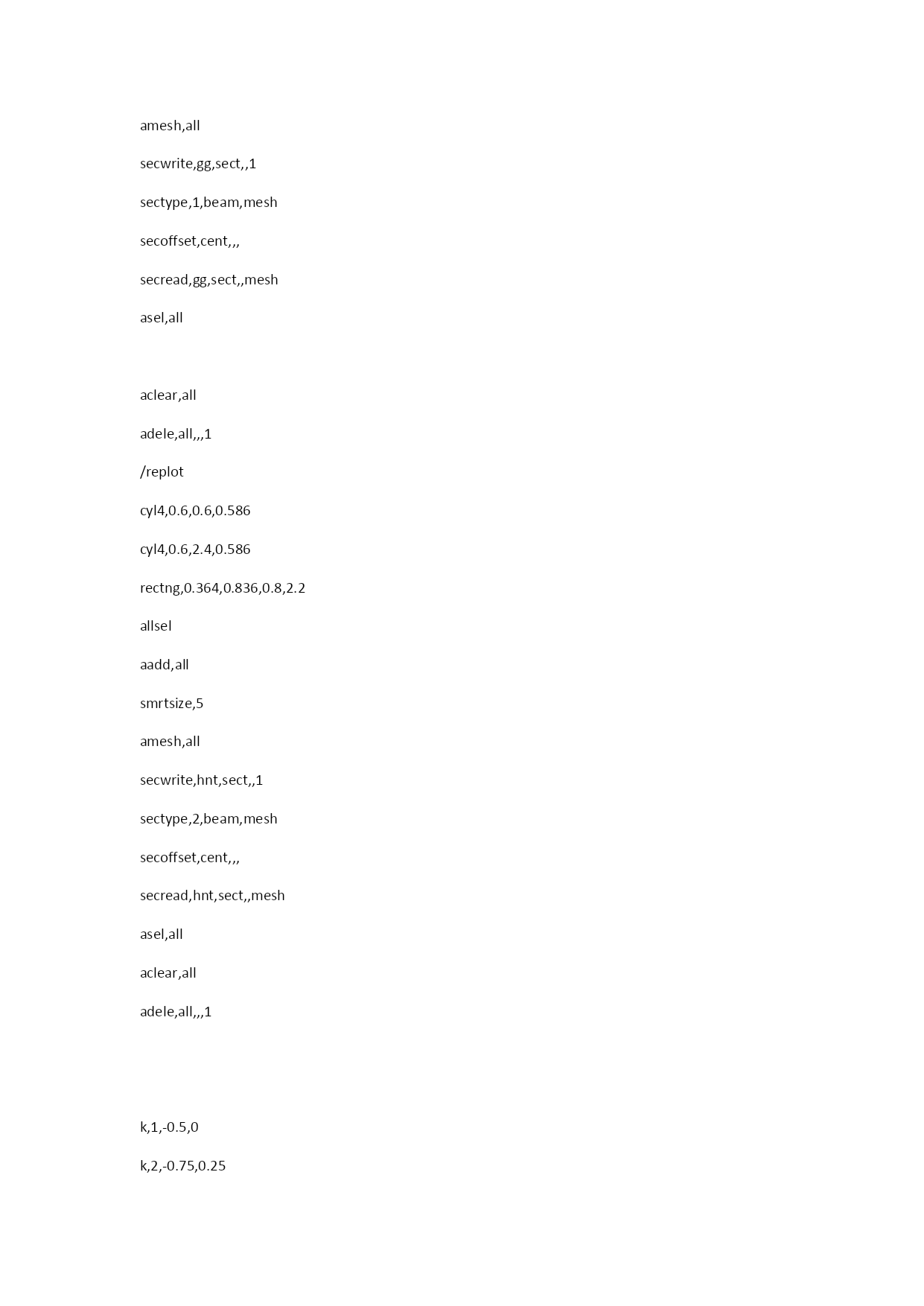

amesh,all
secwrite,gg,sect,,1
sectype,1,beam,mesh
secoffset,cent,,,
secread,gg,sect,,mesh
asel,all

aclear,all
adele,all,,,1
/replot
cyl4,0.6,0.6,0.586
cyl4,0.6,2.4,0.586
rectng,0.364,0.836,0.8,2.2
allsel
aadd,all
smrtsize,5
amesh,all
secwrite,hnt,sect,,1
sectype,2,beam,mesh
secoffset,cent,,,
secread,hnt,sect,,mesh
asel,all
aclear,all
adele,all,,,1


k,1,-0.5,0
k,2,-0.75,0.25
k,3,-0.75,0.5
k,4,-0.55,0.5
k,5,-0.55,0.85
k,6,0.55,0.85
k,7,0.55,0.5
k,8,0.75,0.5
k,9,0.75,0.25
k,10,0.5,0
a,1,2,3,4,5,6,7,8,9,10
smrtsize,5
amesh,all
secwrite,hl1,sect,,1
sectype,4,beam,mesh
secoffset,cent,,,
secread,hl1,sect,,mesh
asel,all
aclear,all
adele,all,,,1

k,1,-0.5,0
k,2,-0.5,1
k,3,-0.75,1.25
k,4,-0.75,1.5
k,5,0.75,1.5
k,6,0.75,1.25
k,7,0.5,1
k,8,0.5
a,1,2,3,4,5,6,7,8

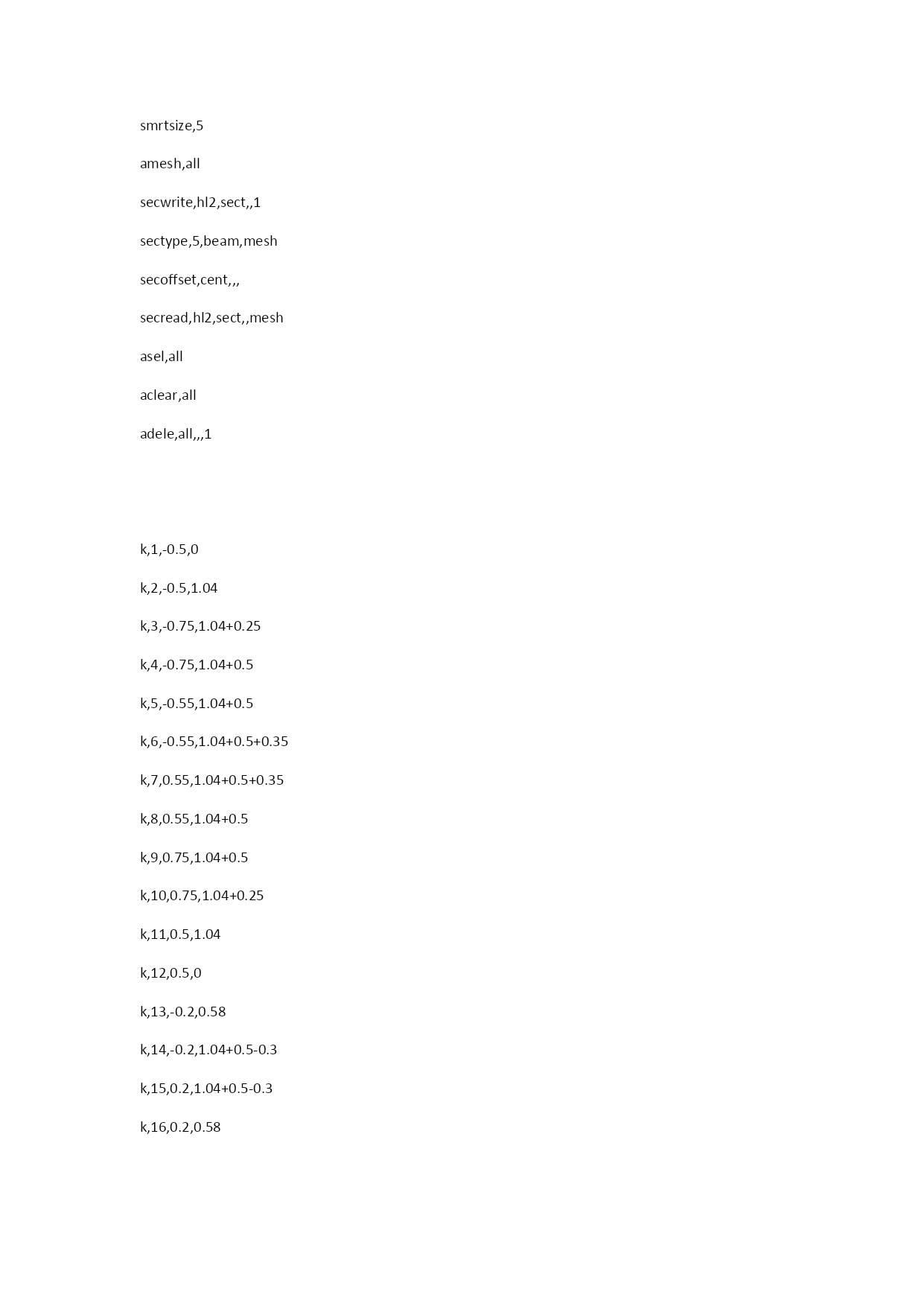

smrtsize,5
amesh,all
secwrite,hl2,sect,,1
sectype,5,beam,mesh
secoffset,cent,,,
secread,hl2,sect,,mesh
asel,all
aclear,all
adele,all,,,1


k,1,-0.5,0
k,2,-0.5,1.04
k,3,-0.75,1.04+0.25
k,4,-0.75,1.04+0.5
k,5,-0.55,1.04+0.5
k,6,-0.55,1.04+0.5+0.35
k,7,0.55,1.04+0.5+0.35
k,8,0.55,1.04+0.5
k,9,0.75,1.04+0.5
k,10,0.75,1.04+0.25
k,11,0.5,1.04
k,12,0.5,0
k,13,-0.2,0.58
k,14,-0.2,1.04+0.5-0.3
k,15,0.2,1.04+0.5-0.3
k,16,0.2,0.58

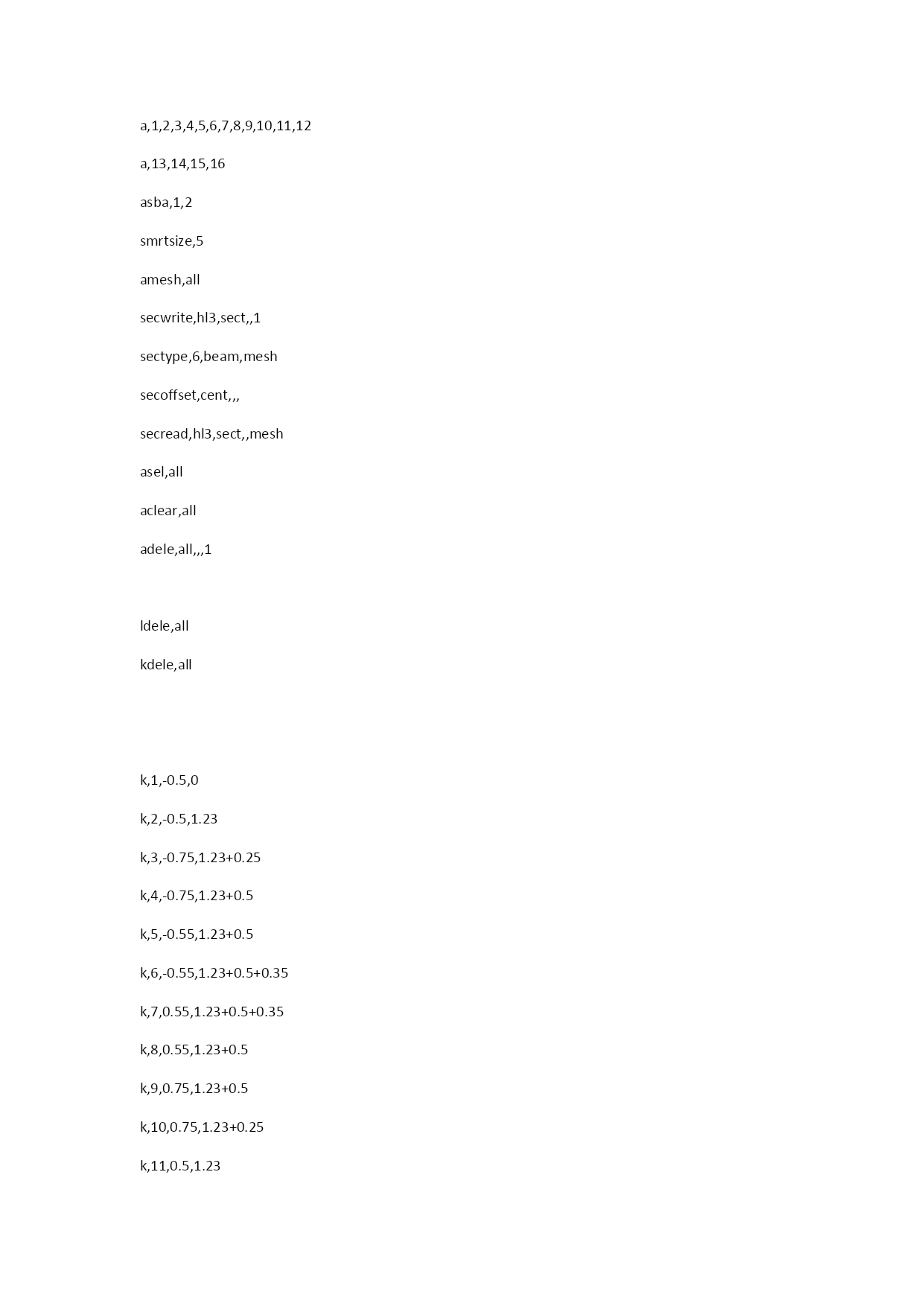

a,1,2,3,4,5,6,7,8,9,10,11,12
a,13,14,15,16
asba,1,2
smrtsize,5
amesh,all
secwrite,hl3,sect,,1
sectype,6,beam,mesh
secoffset,cent,,,
secread,hl3,sect,,mesh
asel,all
aclear,all
adele,all,,,1

ldele,all
kdele,all


k,1,-0.5,0
k,2,-0.5,1.23
k,3,-0.75,1.23+0.25
k,4,-0.75,1.23+0.5
k,5,-0.55,1.23+0.5
k,6,-0.55,1.23+0.5+0.35
k,7,0.55,1.23+0.5+0.35
k,8,0.55,1.23+0.5
k,9,0.75,1.23+0.5
k,10,0.75,1.23+0.25
k,11,0.5,1.23
k,12,0.5,0
k,13,-0.2,0.38
k,14,-0.3,0.38
k,15,-0.3,1.23+0.5-0.1-0.2
k,16,-0.2,1.23+0.5-0.1
k,17,0.2,1.23+0.5-0.1
k,18
