2022H3C三层交换机DHCP服务器配置实例.docx

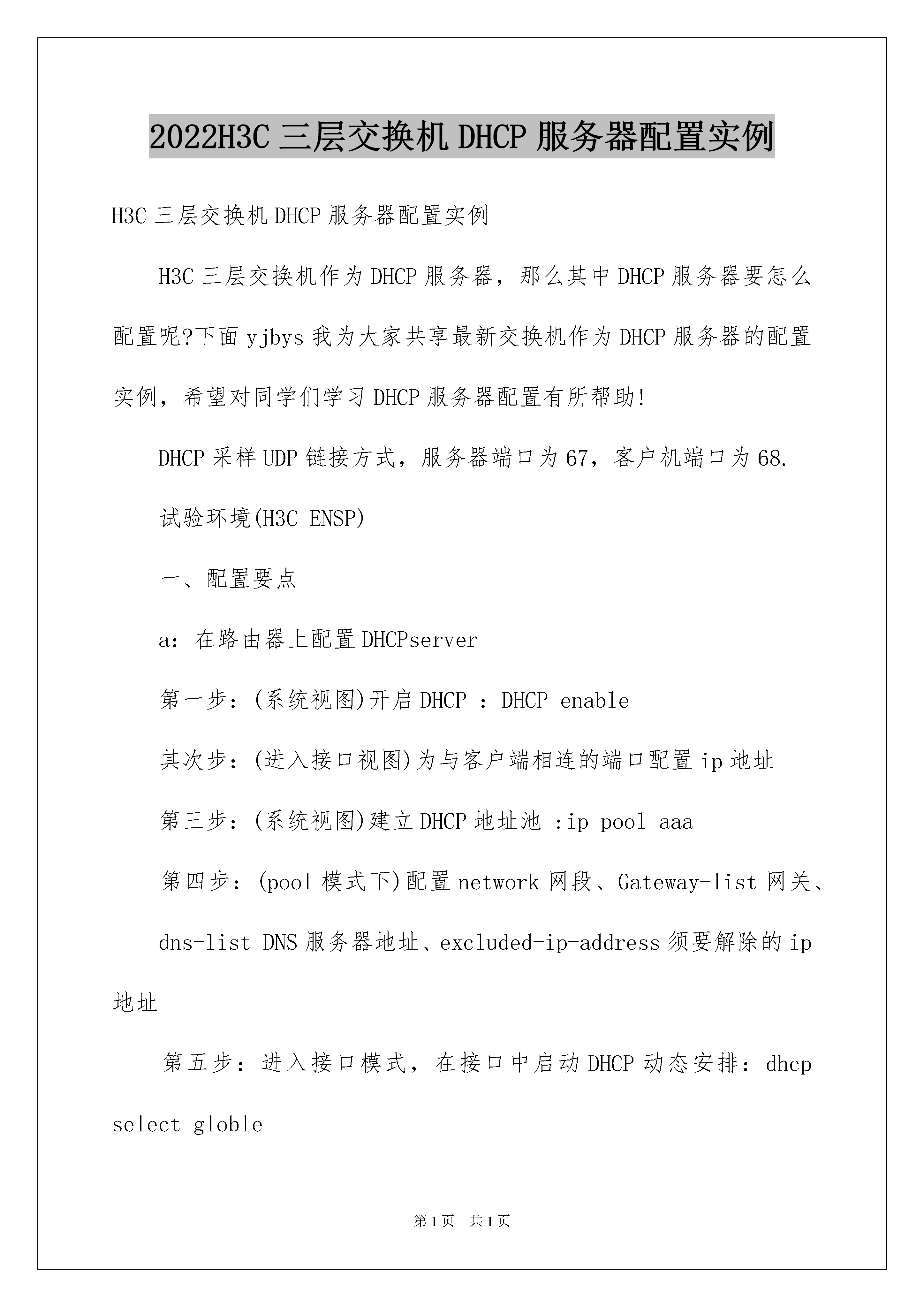

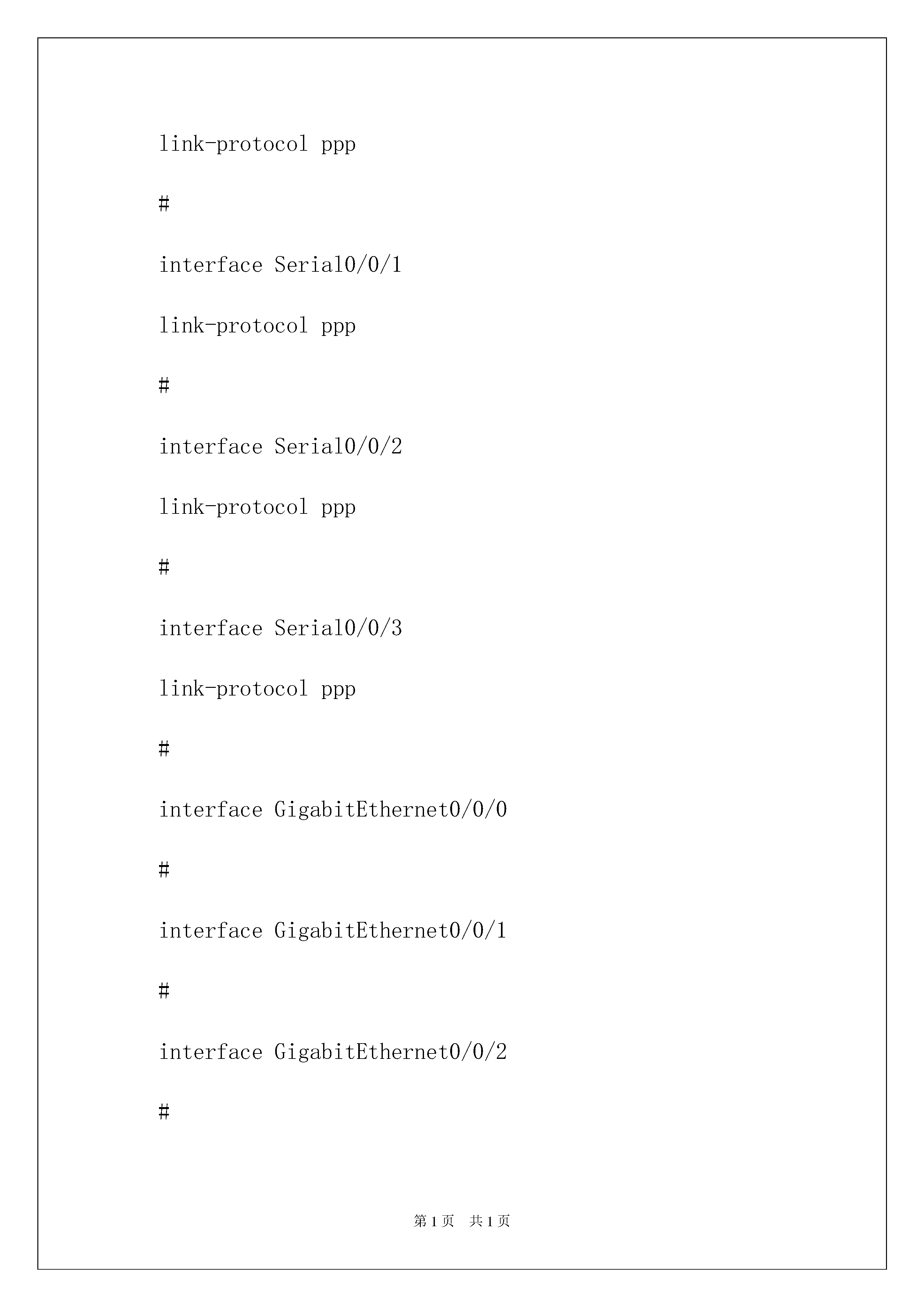

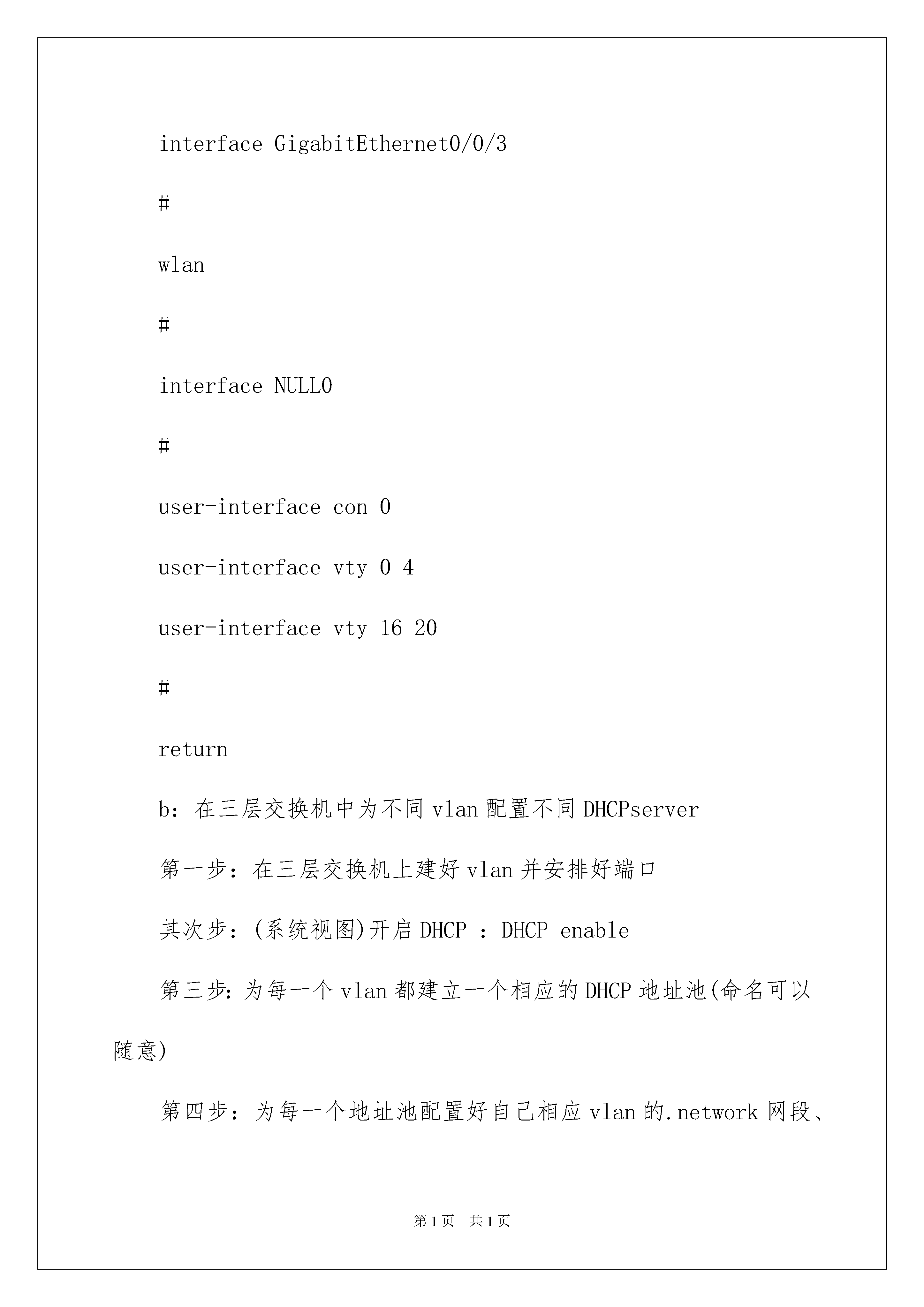

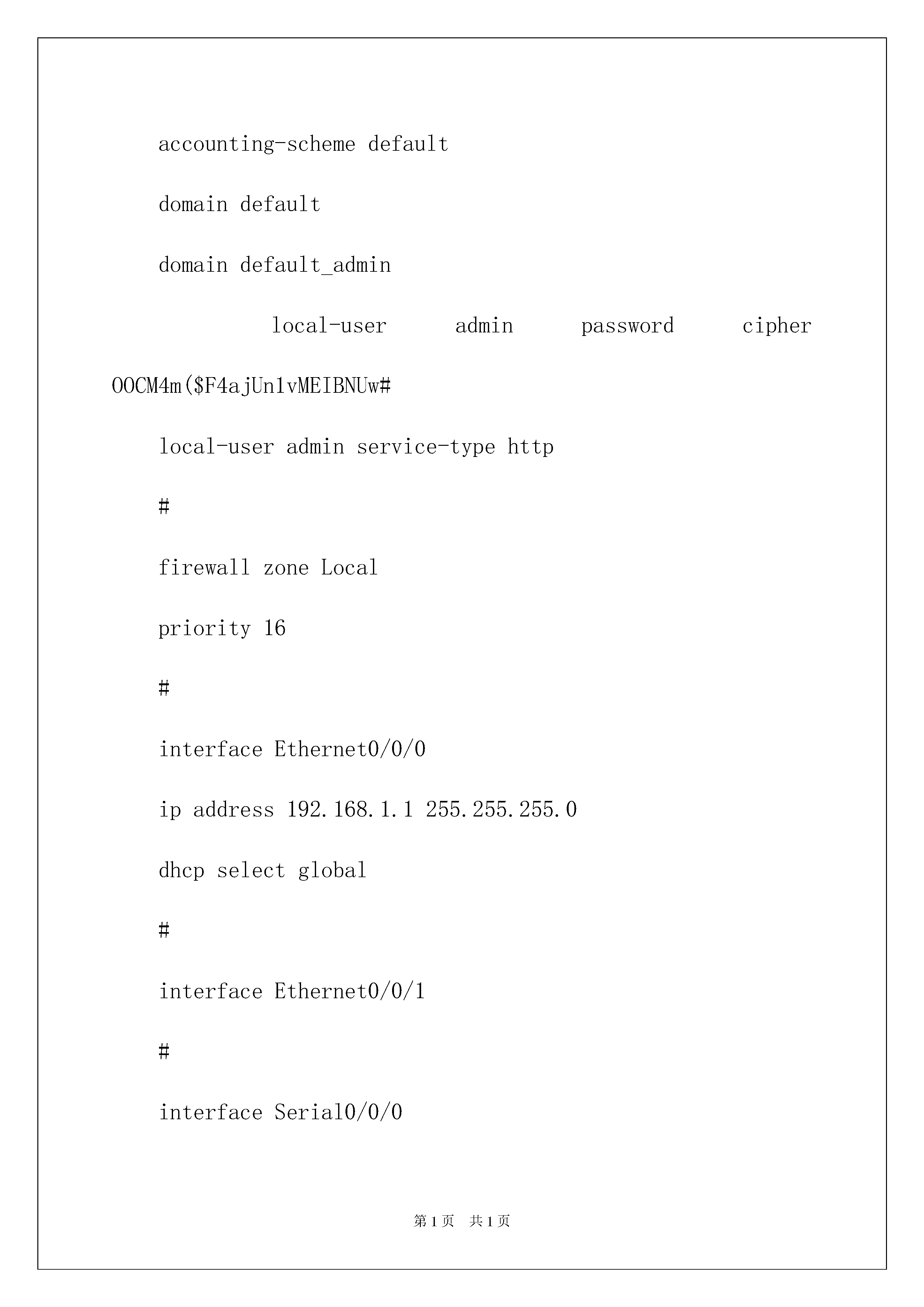

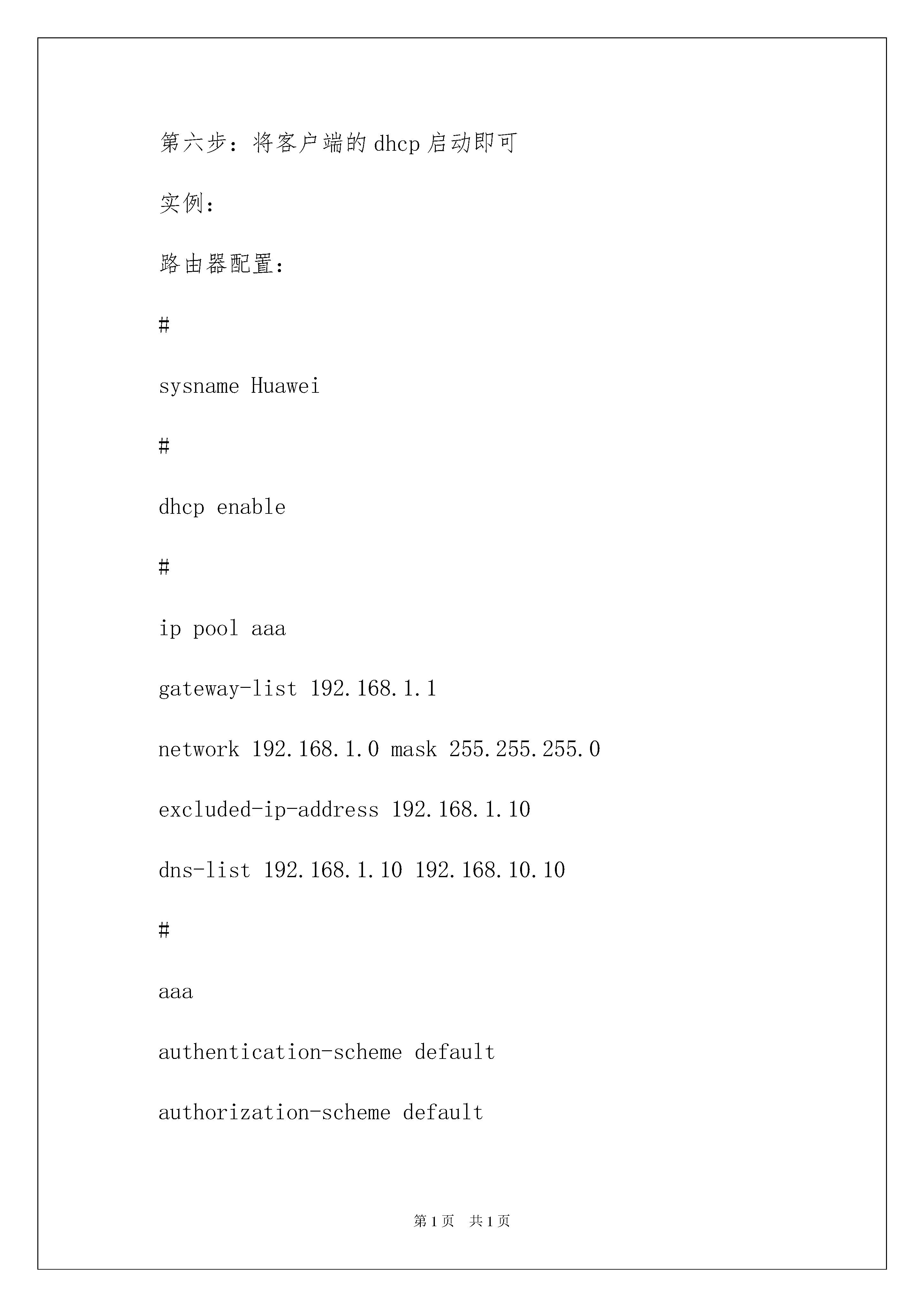

2022H3C三层交换机DHCP服务器配置实例H3C三层交换机DHCP服务器配置实例H3C三层交换机作为DHCP服务器，那么其中DHCP服务器要怎么配置呢?下面yjbys我为大家共享最新交换机作为DHCP服务器的配置实例，希望对同学们学习DHCP服务器配置有所帮助!DHCP采样UDP链接方式，服务器端口为67，客户机端口为68.试验环境(H3CENSP)一、配置要点a：在路由器上配置DHCPserver第一步：(系统视图)开启DHCP：DHCPenable其次步：(进入接口视图)为与客户端相连的端口配置ip地址第三步：(系统视图)建立DHCP地址池:ippoolaaa第四步：(pool模式下)配置network网段、Gateway-list网关、dns-listDNS服务器地址、excluded-ip-address须要解除的ip地址第五步：进入接口模式，在接口中启动DHCP动态安排：dhcpselectgloble第六步：将客户端的dhcp启动即可实例：路由器配置：#sysnameHuawei#dhcpenable#ippoolaaagateway-list192.168.1.1network192.168.1.0mask255.255.255.0excluded-ip-address192.168.1.10dns-list192.168.1.10192.168.10.10#aaaauthentication-schemedefaultauthorization-schemedefaultaccounting-schemedefaultdomaindefaultdomaindefault_adminlocal-useradminpasswordcipherOOCM4m($F4ajUn1vMEIBNUw#local-useradminservice-typehttp#firewallzoneLocalpriority16#interfaceEthernet0/0/0ipaddress192.168.1.1255.255.255.0dhcpselectglobal#interfaceEthernet0/0/1#interfaceSerial0/0/0link-protocolppp#interfaceSerial0/0/1link-protocolppp#interfaceSerial0/0/2link-protocolppp#interfaceSerial0/0/3link-protocolppp#interfaceGigabitEthernet0/0/0#interfaceGigabitEthernet0/0/1#interfaceGigabitEthernet0/0/2#interfaceGigabitEthernet0/0/3#wlan#interfaceNULL0#user-interfacecon0user-interfacevty04user-interfacevty1620#returnb：在三层交换机中为不同vlan配置不同DHCPserver第一步：在三层交换机上建好vlan并安排好端口其次步：(系统视图)开启DHCP：DHCPenable第三步：为每一个vlan都建立一个相应的DHCP地址池(命名可以随意)第四步：为每一个地址池配置好自己相应vlan的.network网段、Gateway-list网关、dns-listDNS服务器地址、excluded-ip-address须要解除的ip地址第五步：进入每一个vlan接口，先配置好各自的ip地址，然后在启动DHCP动态安排：dhcpselectgloble第六步：将客户端的dhcp启动即可实例：三层交换机配置：[Huawei]displaycurrent-configuration#sysnameHuawei#vlanbatch2to3#clusterenablentdpenablendpenable#dropillegal-macalarm#dhcpenable#diffservdomaindefault#drop-profiledefault#ippoolaaanetwork192.168.1.0mask255.255.255.0excluded-ip-address192.168.1.1dns-list192.168.10.10#ippoolbbbnetwork192.168.2.0mask255.255.255.0excluded-ip-address192.168.2.1dns-list192
