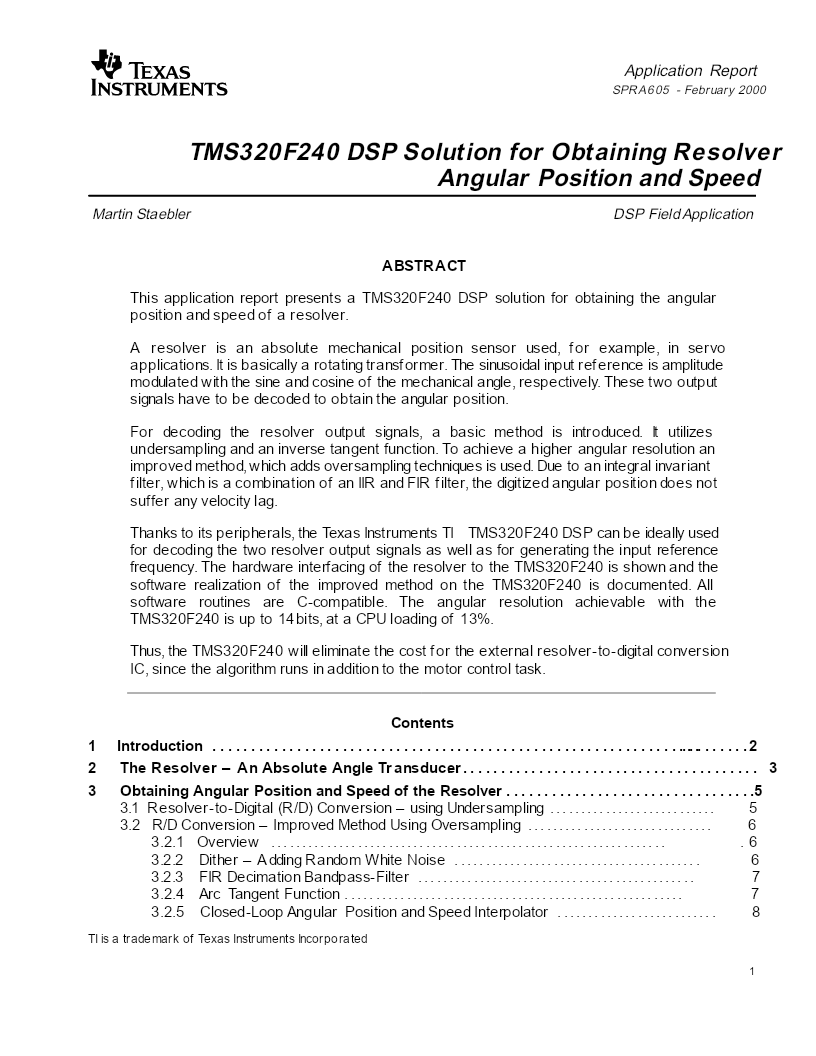

ApplicationReport
SPRA605-February2000

TMS320F240DSPSolutionforObtainingResolver
AngularPositionandSpeed

MartinStaeblerDSPFieldApplication

ABSTRACT

ThisapplicationreportpresentsaTMS320F240DSPsolutionforobtainingtheangular
positionandspeedofaresolver.

Aresolverisanabsolutemechanicalpositionsensorused,forexample,inservo
applications.Itisbasicallyarotatingtransformer.Thesinusoidalinputreferenceisamplitude
modulatedwiththesineandcosineofthemechanicalangle,respectively.Thesetwooutput
signalshavetobedecodedtoobtaintheangularposition.

Fordecodingtheresolveroutputsignals,abasicmethodisintroduced.Itutilizes
undersamplingandaninversetangentfunction.Toachieveahigherangularresolutionan
improvedmethod,whichaddsoversamplingtechniquesisused.Duetoanintegralinvariant
filter,whichisacombinationofanIIRandFIRfilter,thedigitizedangularpositiondoesnot
sufferanyvelocitylag.

Thankstoitsperipherals,theTexasInstrumentsTITMS320F240DSPcanbeideallyused
fordecodingthetworesolveroutputsignalsaswellasforgeneratingtheinputreference
frequency.ThehardwareinterfacingoftheresolvertotheTMS320F240isshownandthe
softwarerealizationoftheimprovedmethodontheTMS320F240isdocumented.All
softwareroutinesareC-compatible.Theangularresolutionachievablewiththe
TMS320F240isupto14bits,ataCPUloadingof13%.

Thus,theTMS320F240willeliminatethecostfortheexternalresolver-to-digitalconversion
IC,sincethealgorithmrunsinadditiontothemotorcontroltask.

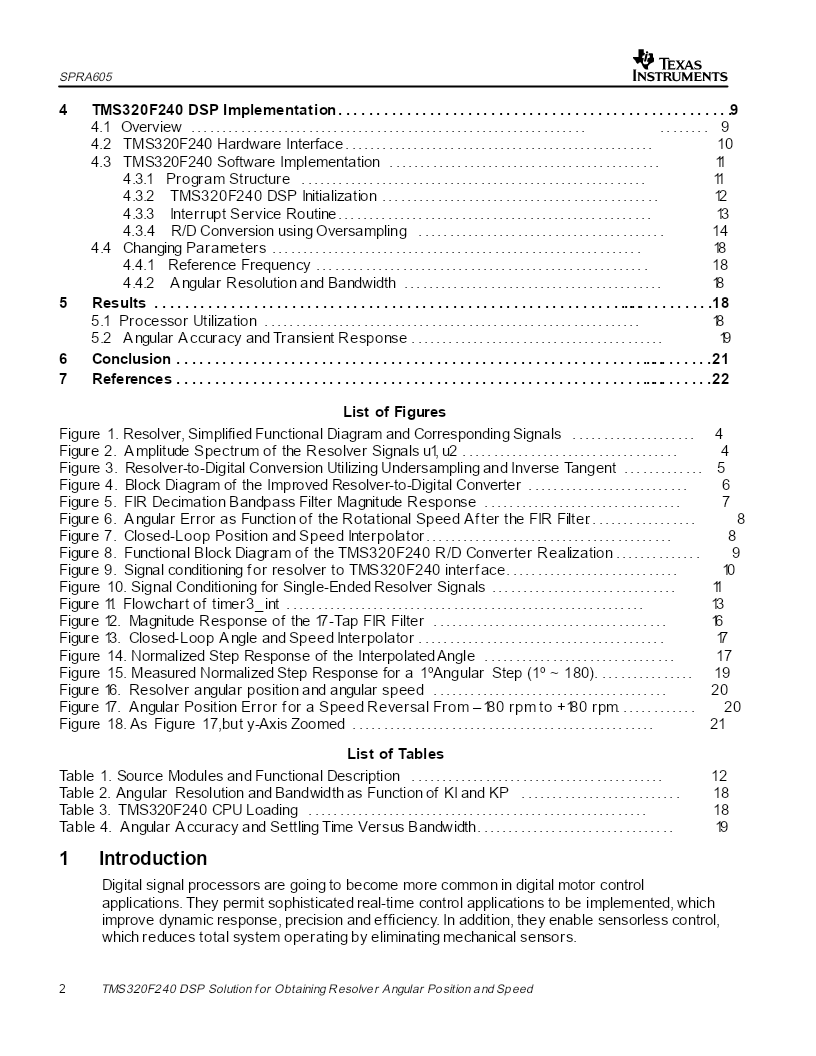

Contents
1Introduction.........................................................................2
2TheResolver–AnAbsoluteAngleTransducer.........................................3
3ObtainingAngularPositionandSpeedoftheResolver.................................5
3.1Resolver-to-Digital(R/D)Conversion–usingUndersampling...........................5
3.2R/DConversion–ImprovedMethodUsingOversampling..............................6
3.2.1Overview.................................................................6
3.2.2Dither–AddingRandomWhiteNoise........................................6
